Pharmacy

Automated handling of sensitive products

Sensitive pharmaceutical products, such as cell and gene therapy drugs, must be stored and packaged in extreme cold.
To ensure this, systems are required in which the drug vials are labeled fully automatically and packaged according to customer-specific requirements with the utmost care in the climate chamber.
UNEXIS GmbH develops and manufactures individual packaging systems that meet these special requirements in pharmaceutical and medical technology.

  • Cleaning, labelling and picking at extreme sub-zero temperatures
  • Fully automated packaging by robots
  • Highest precision
  • Handling of sensitive parts
  • Complex mechatronic requirements
  • Approved for the pharmaceutical industry



Robotic system and applications for fully automated storage, sorting, labeling, picking and testing of medication vials in the climatic chamber up to -30°C.



Automated storage system for ultra-low temperatures

Together with our partner REFOLUTION, we presented the modular Densitiy Container Storage System (ULT HD) at the Achema 2024 trade fair in Frankfurt.

The ULT HD System was developed for the automated storage of goods at temperatures down to -80°C.

It can be installed in existing room-temperature storage facilities without any structural changes – temporarily or permanently.

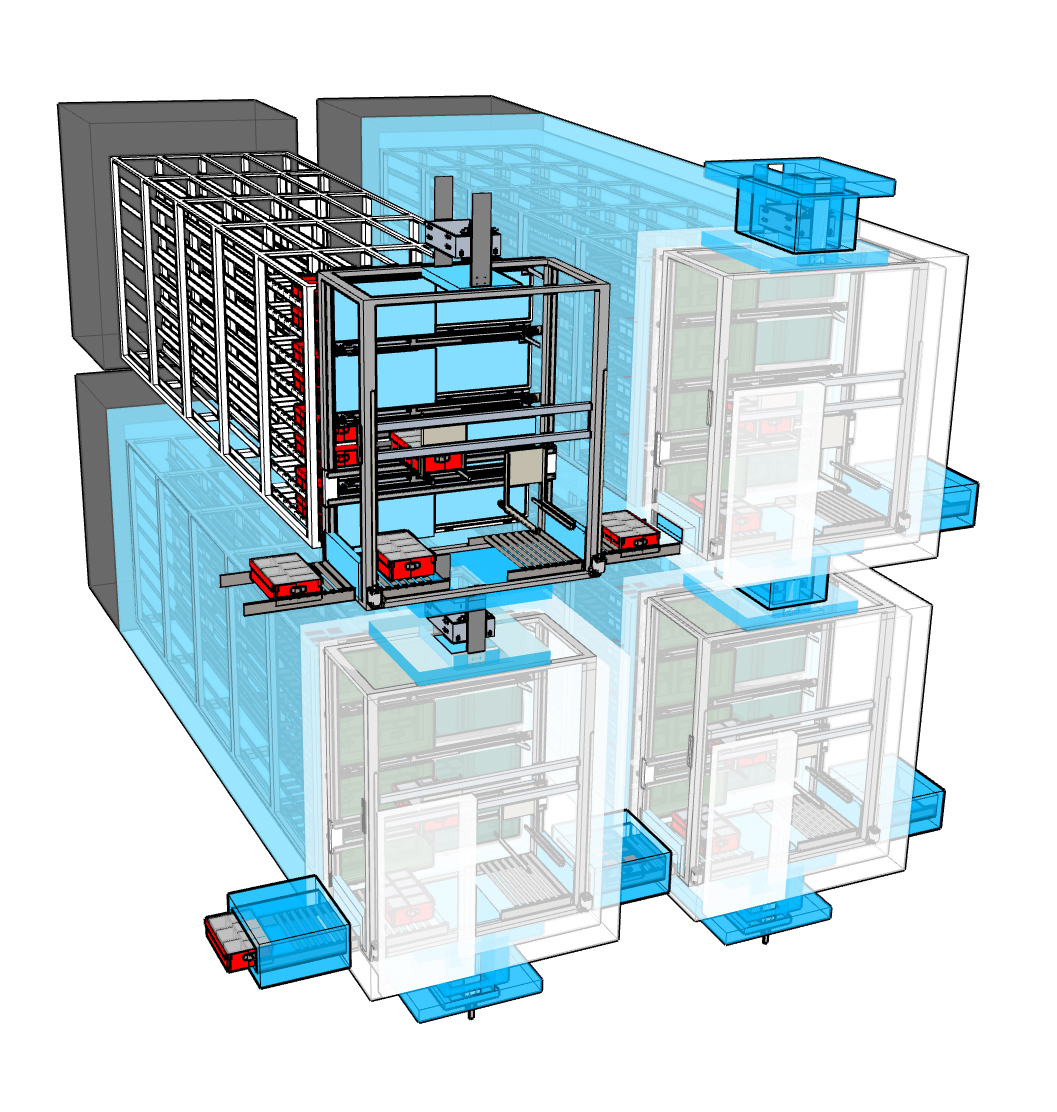

Each ULT HD System is divided into three areas:

  • Handling (filling and retrieval of the Storage)
  • Storage (sequential)
  • Cooling unit

A major advantage is that the “Handling” and “Storage” areas can be divided into different temperature zones: Handling down to -40°C and Storage down to -80°C.

The Handling System is redundant and therefore highly reliable. It fills the large storage area sequentially via sliding doors.

Additional ULT HD Systems can be docked horizontally and vertically via a temperature-controlled airlock system, making the system infinitely expandable.

The entire System is controlled by ACTERE automation software from KARING.

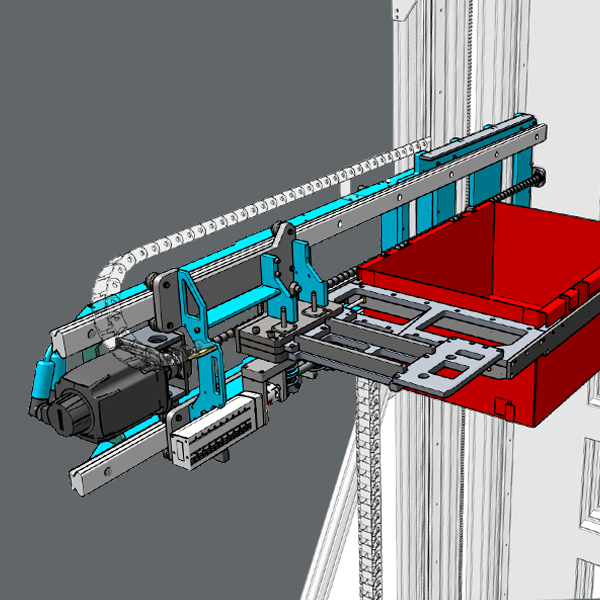

Handling at -40°C

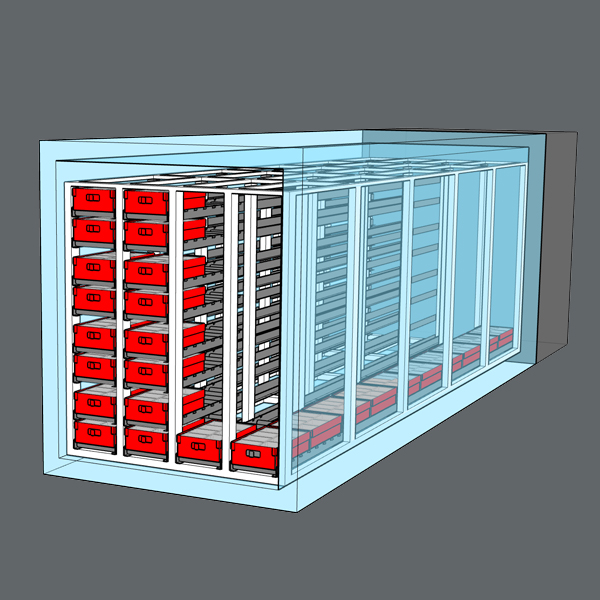

Storage at -80°C

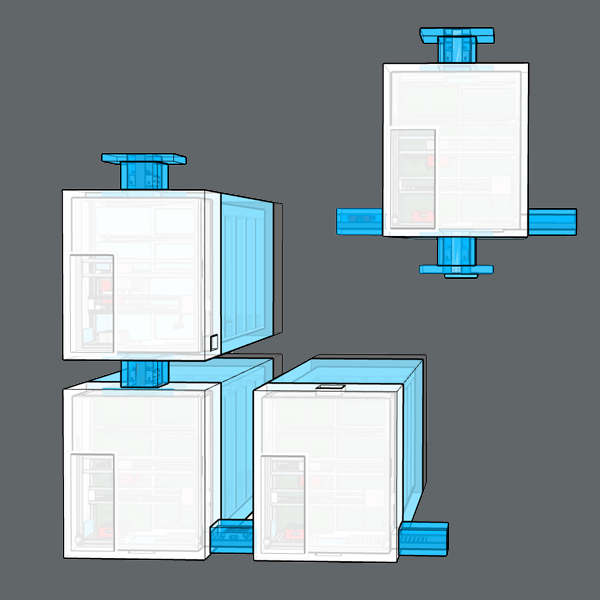

Modular System

ACTERE – Software

The ACTERE software is a complete package for control in the pharmaceutical sector and many other industries. It is individually adaptable, user-friendly and enables simple control of complex systems.

ACTERE offers graphical programming of complex and parallel processes. Parallel processes can run concurrently or alternatively. ACTERE uses Groovy as the scripting language. It offers open and extensive interfaces to the communication and I/O. The ACTERE enables measurement, documentation, assessment and analysis to be carried out online (all actions take place during the measurement) All process steps are logged and traceable. The ACTERE is a software for controlling our actuators (μAct, mini-Act, HiL-Act, servo motors, robots…) including various, predefined function modules with intelligent measurement data storage. Furthermore, this innovative software supports MDF.4 files. It offers flexible access control through individual assignment of rights to individual users and user groups.
